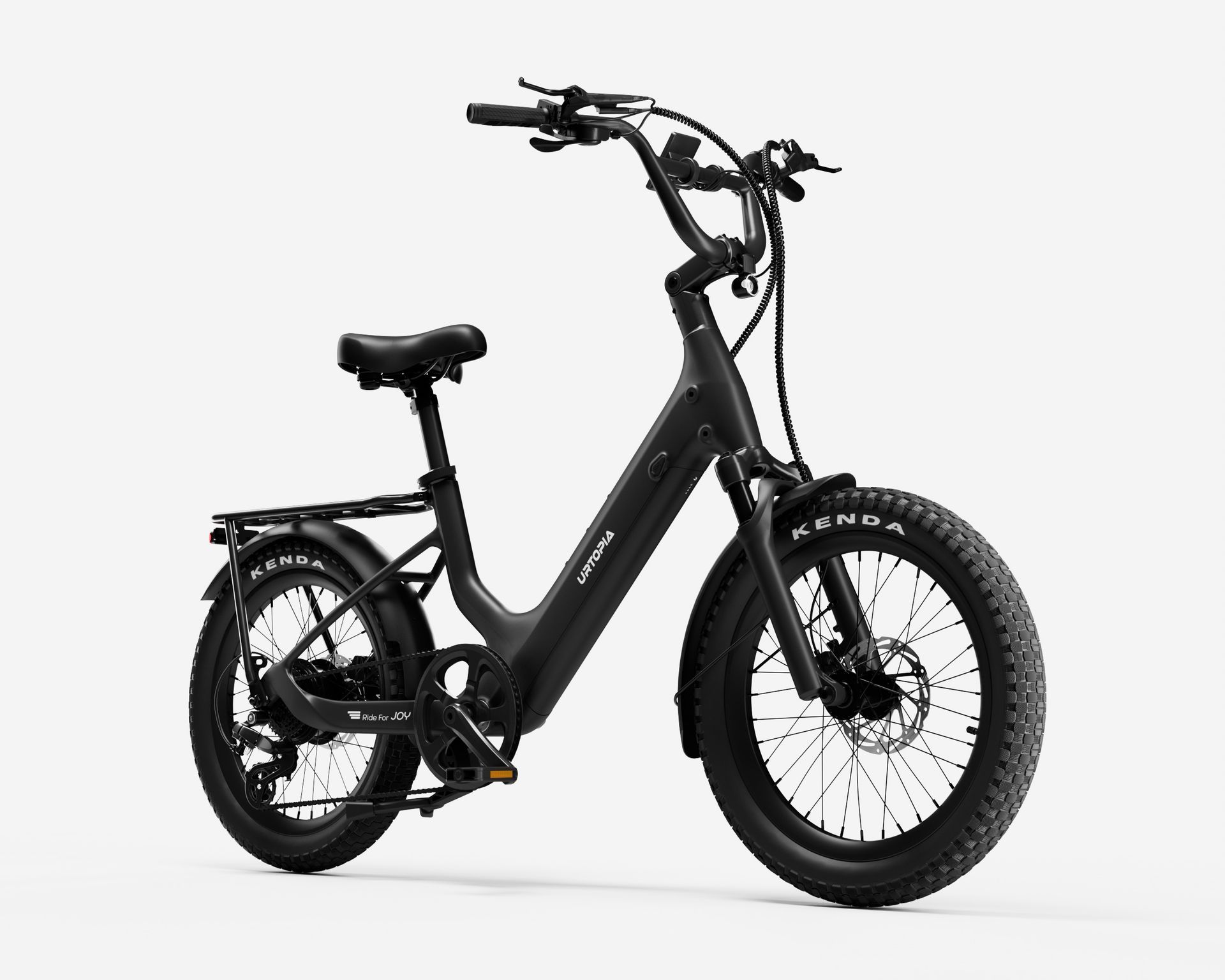

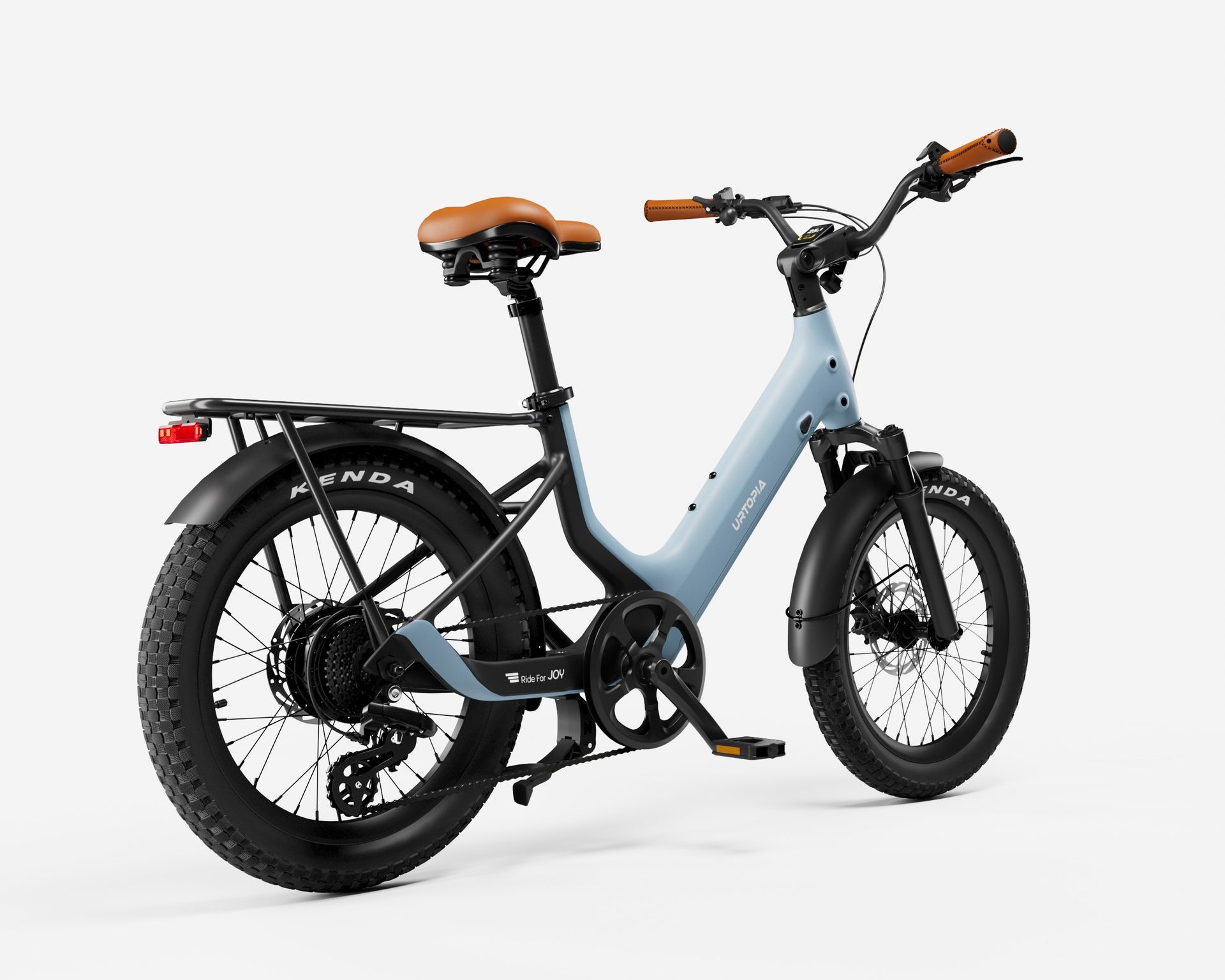

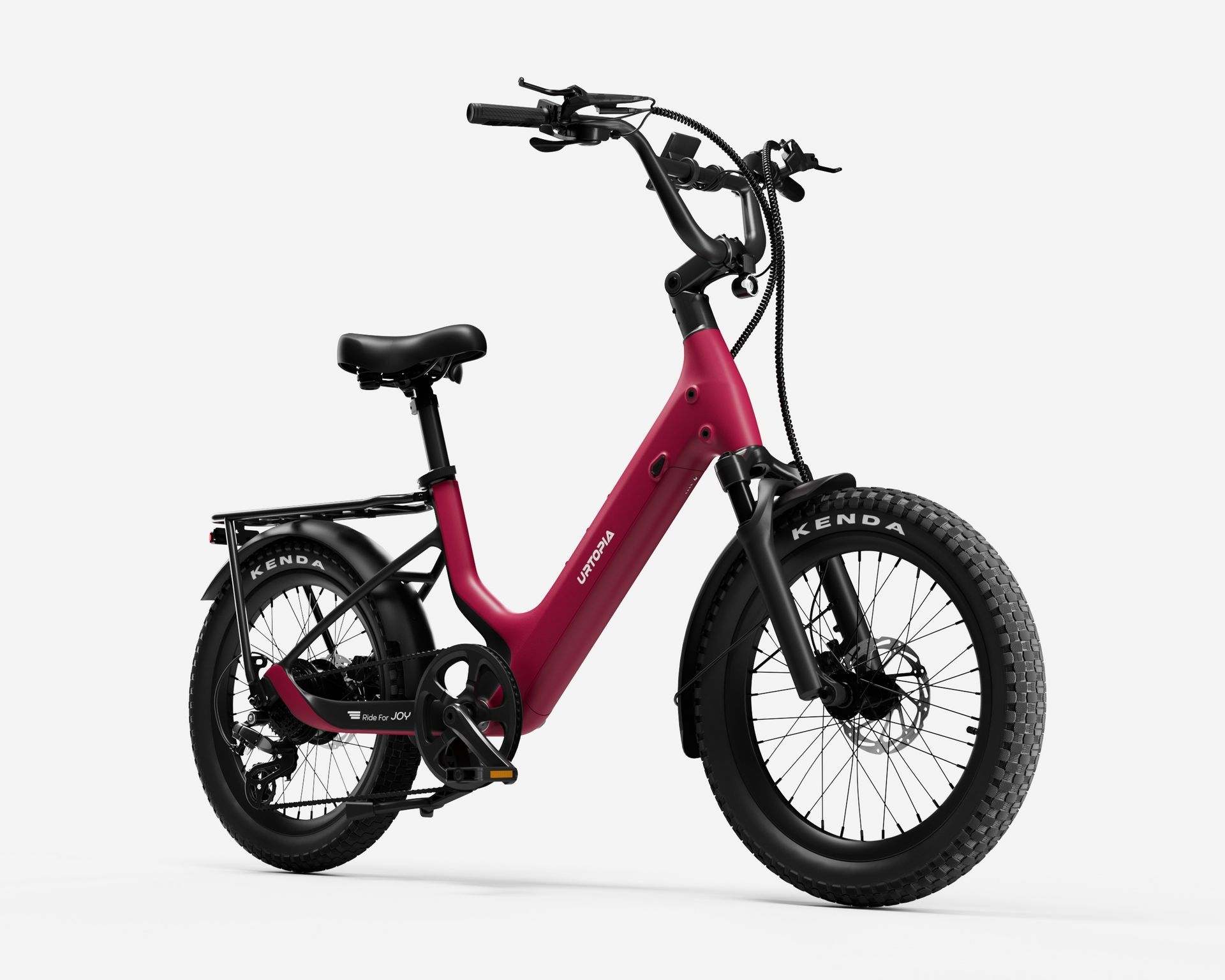

Carbon Joy
$1,899 | The Carbon Fat Tire Cruiser by Urtopia
Fat tire fun without the fat tire weight. The Carbon Joy wraps a 500W motor, a 529Wh Samsung battery, and 20x3.0 puncture-resistant tires in a carbon monocoque frame, landing at a very manageable 57 pounds. A 50mm suspension fork, BMX-style cruiser bars, and a wide saddle make it a blast around town, and a 330 lb payload with an included rear rack means it works as hard as it plays. Low 16 inch standover makes it easy for just about anyone to ride!
500W Rear-Hub Motor
36V - 14.7Ah Battery
Class 2 - 20MPH (Class 3 Unlockable to 25MPH)
Up to 65 Miles per Charge
Full Carbon Folding Frame
750W Peak Power
65 Mile Range
Built to Carry

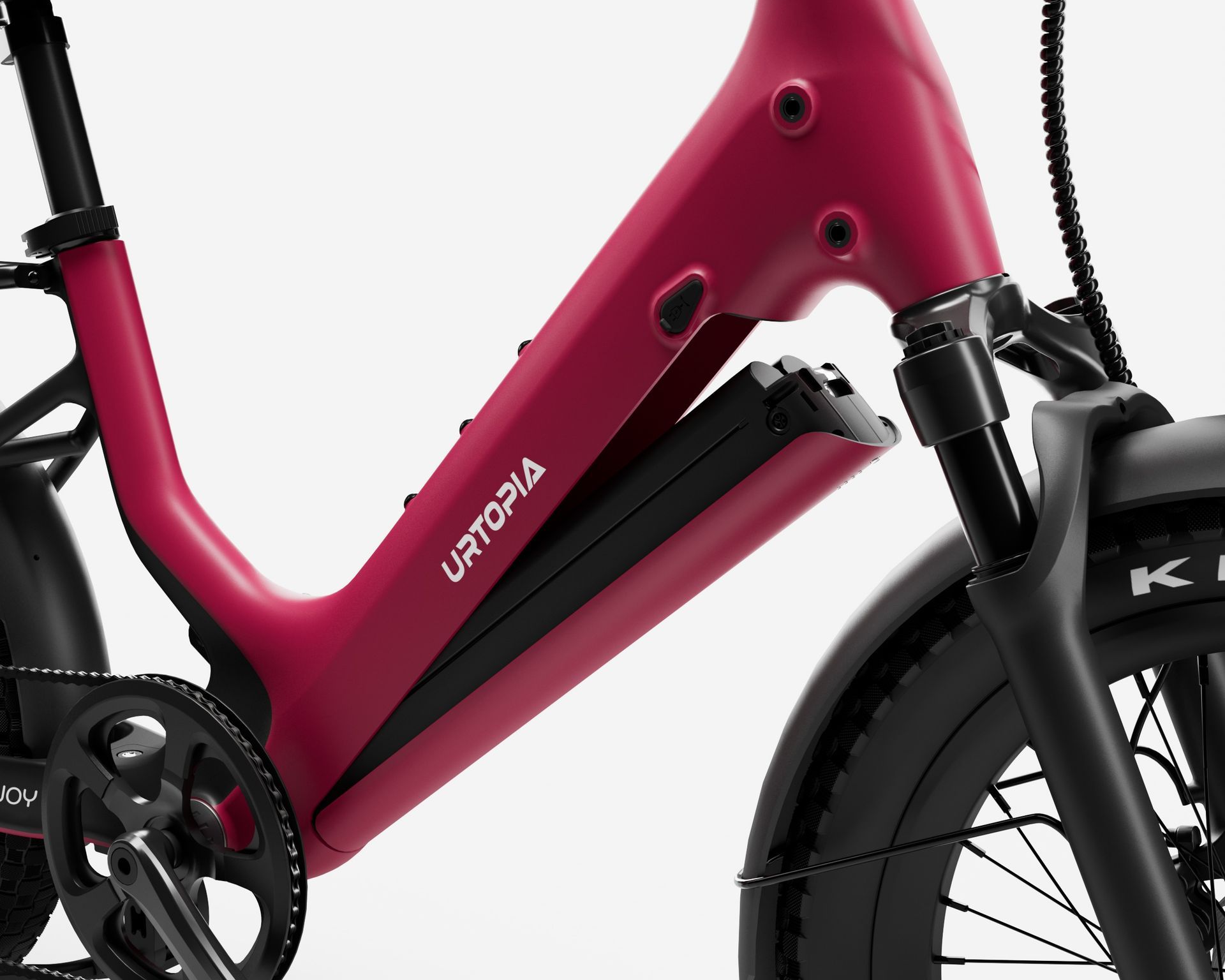

Full Carbon Folding Frame
Urtopia molds the Joy's step-through frame as a single piece of carbon fiber, claiming about 30 percent weight savings over aluminum. The result is a fat tire bike you can actually lift onto a car rack.
750W Peak Power
The strongest motor in Urtopia's lineup puts out 500W nominal, 750W peak, and 50 Nm of torque, paired with torque-sensing pedal assist and a thumb throttle for easy launches.
65 Mile Range
A removable 529Wh Samsung battery is rated for up to 65 miles in Eco mode and refills in about 3.5 hours with the included fast charger. Plenty for a full day on the Stateline trails.
Built to Carry
A 330 lb payload, an integrated rear rack with brake-sensing tail light, full fenders, and a 50mm suspension fork make the Joy as useful for errands as it is for cruising the bike path.
General Information
- Range: Up to 65 Miles (Eco, Pedal Assist)
- Recommended Height: 5'1" - 6'1" (16" Standover)
- Max Load: 330 lbs
- Bike Weight: 57 lbs (45 lbs without battery)
Ebike System & Drivetrain
- Motor: 36V 500W Rear Hub, 750W Peak, 50 Nm
- Battery: 36V 14.7Ah (529.2Wh) Samsung Cells, Removable, UL 2271
- Throttle: Thumb Throttle
- Charging Time: 3.5 Hours (36V 4A Fast Charger)
- Pedal Assist: Torque Sensor, 4 Levels
- Derailleur: Shimano Altus 8 Speed, 12-32T
Frameset
- Suspension: Front Suspension Fork 50mm Travel w/ Preload Adjust
Wheelset & Brakes & Cockpit
- Tires: 20" x 3.0" Kenda Puncture-Resistant Fat Tires
- Brakes: Tektro Hydraulic Disc, 180mm Rotors

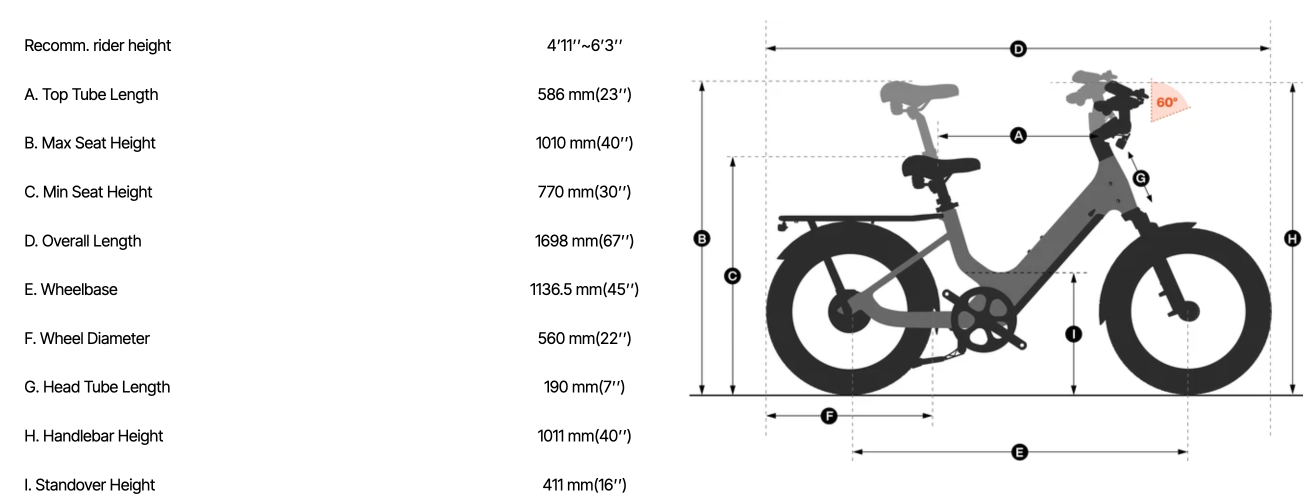

Geometry
